Riviera Assembly Instructions
1) Prepare the back base sections by bolting in the flip legs (with bolts and hammered-in T-nuts), and inserting the clevis pins

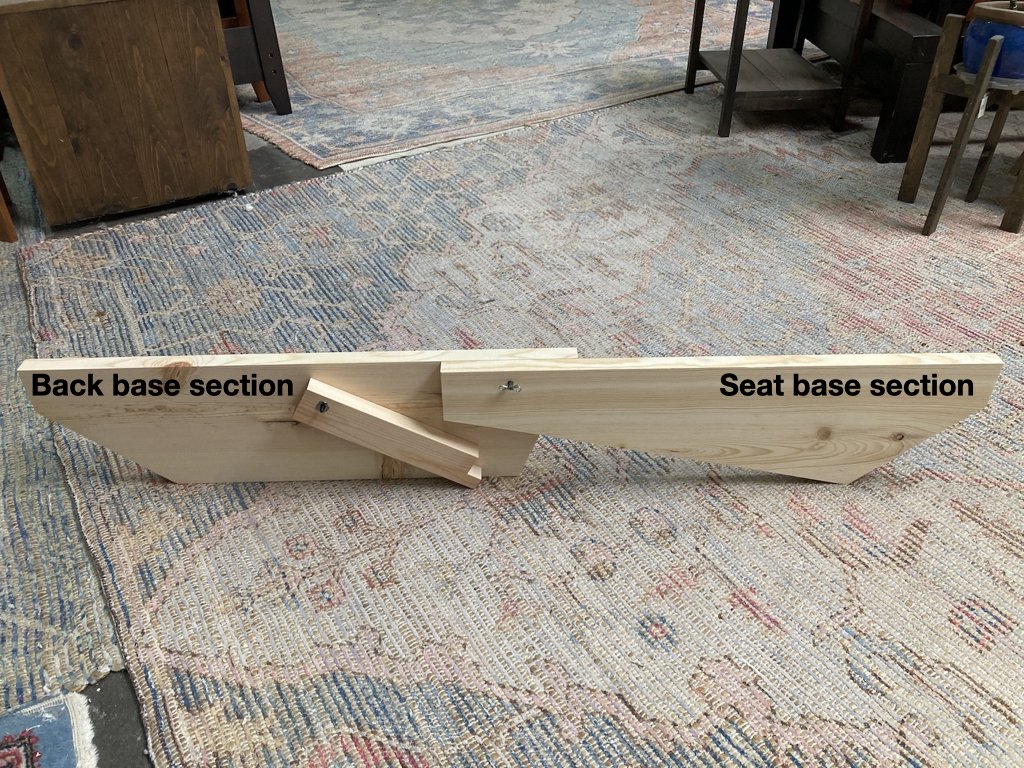

Inside view of back base section with flip leg and clevis pin (1)
2) Connect the seat base sections to the back base sections, and secure them with the cotter pins

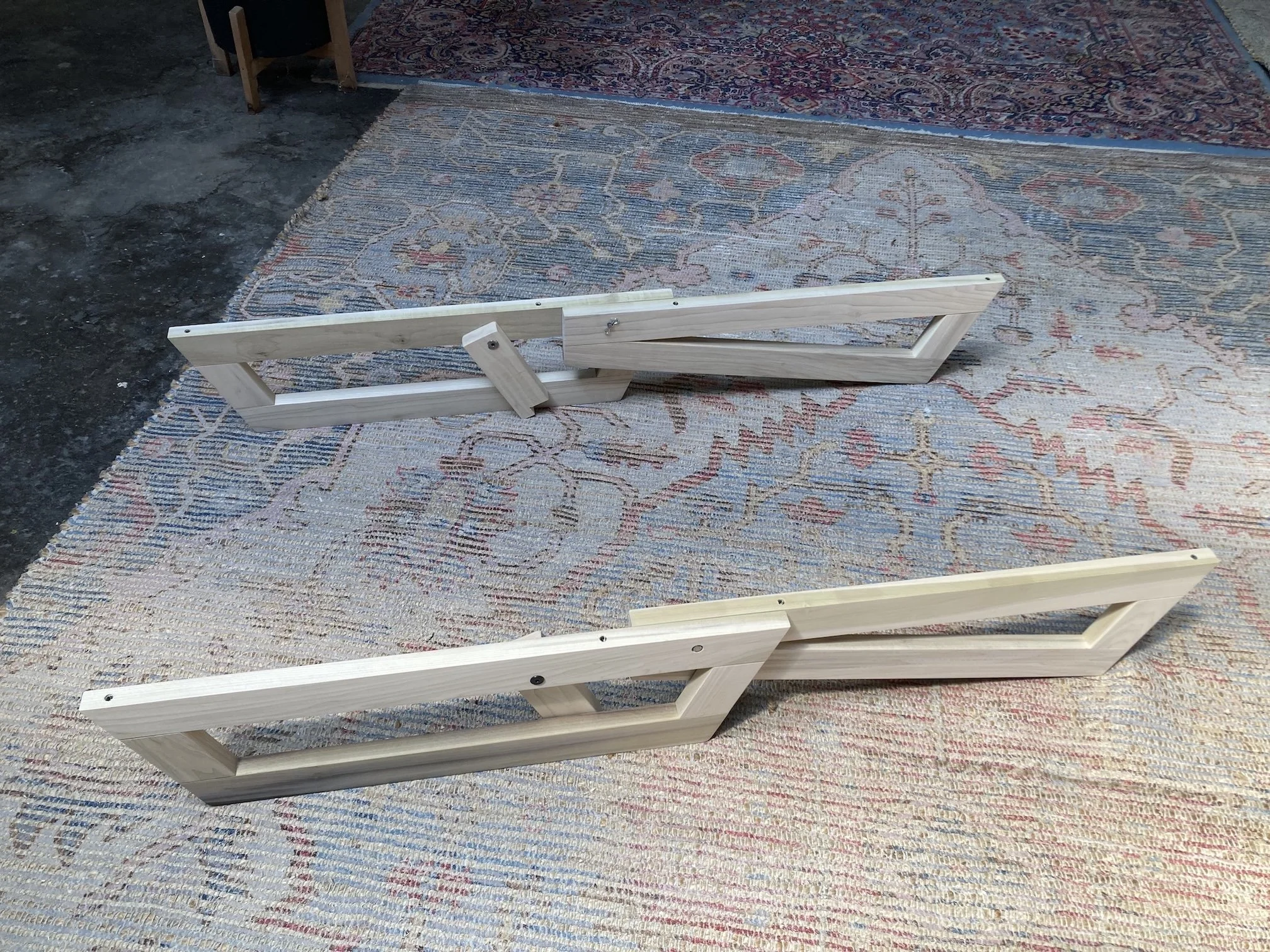

Inside view of base assembly (2)
Outside view of base assembly (2)

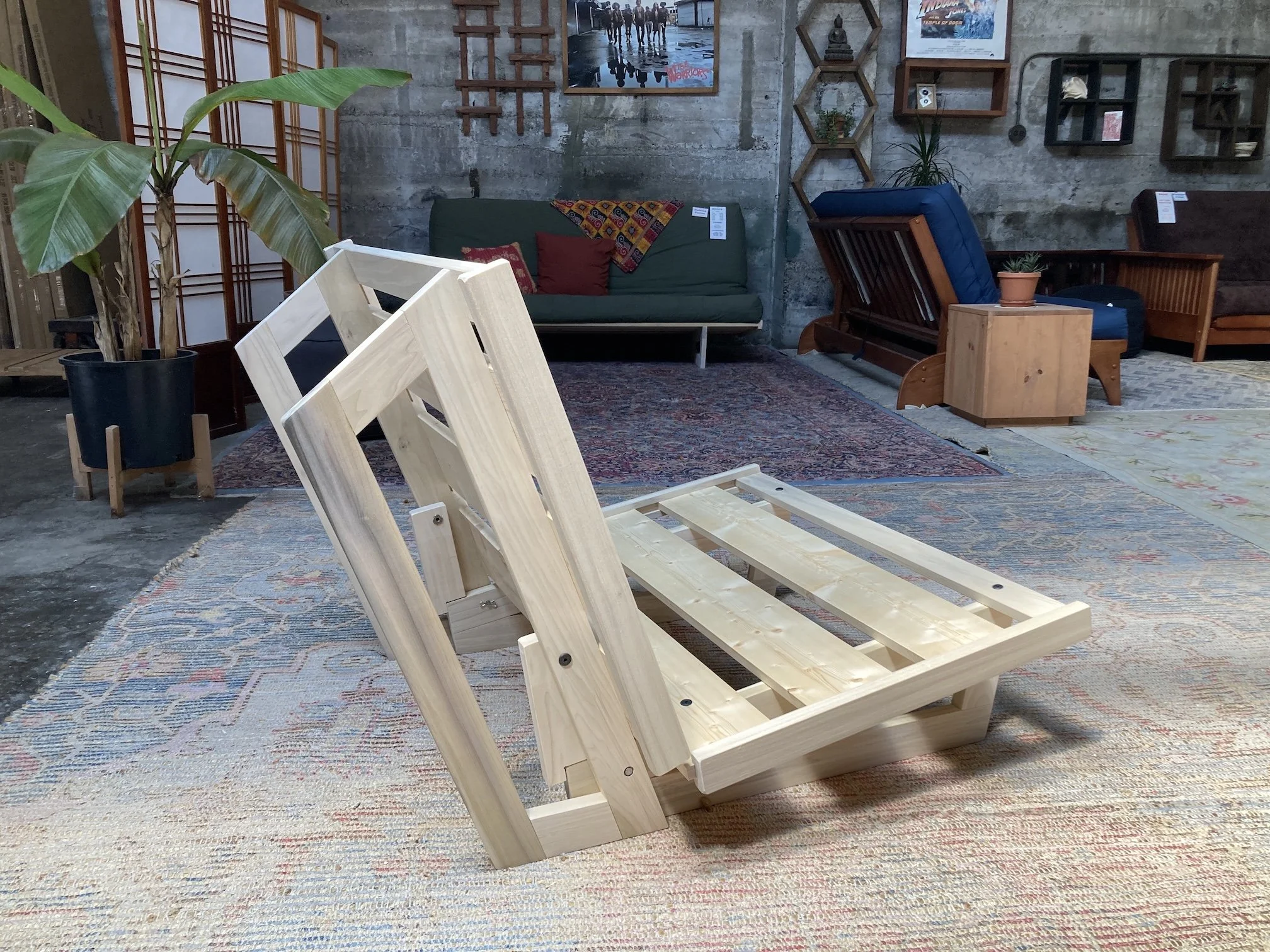

3) Position the two base sections vertically on the floor facing each other with the flip legs on the inside
NOTE: the back and seat decks have a front and a middle slat. The middle slats protrude a half and inch out from the end caps.

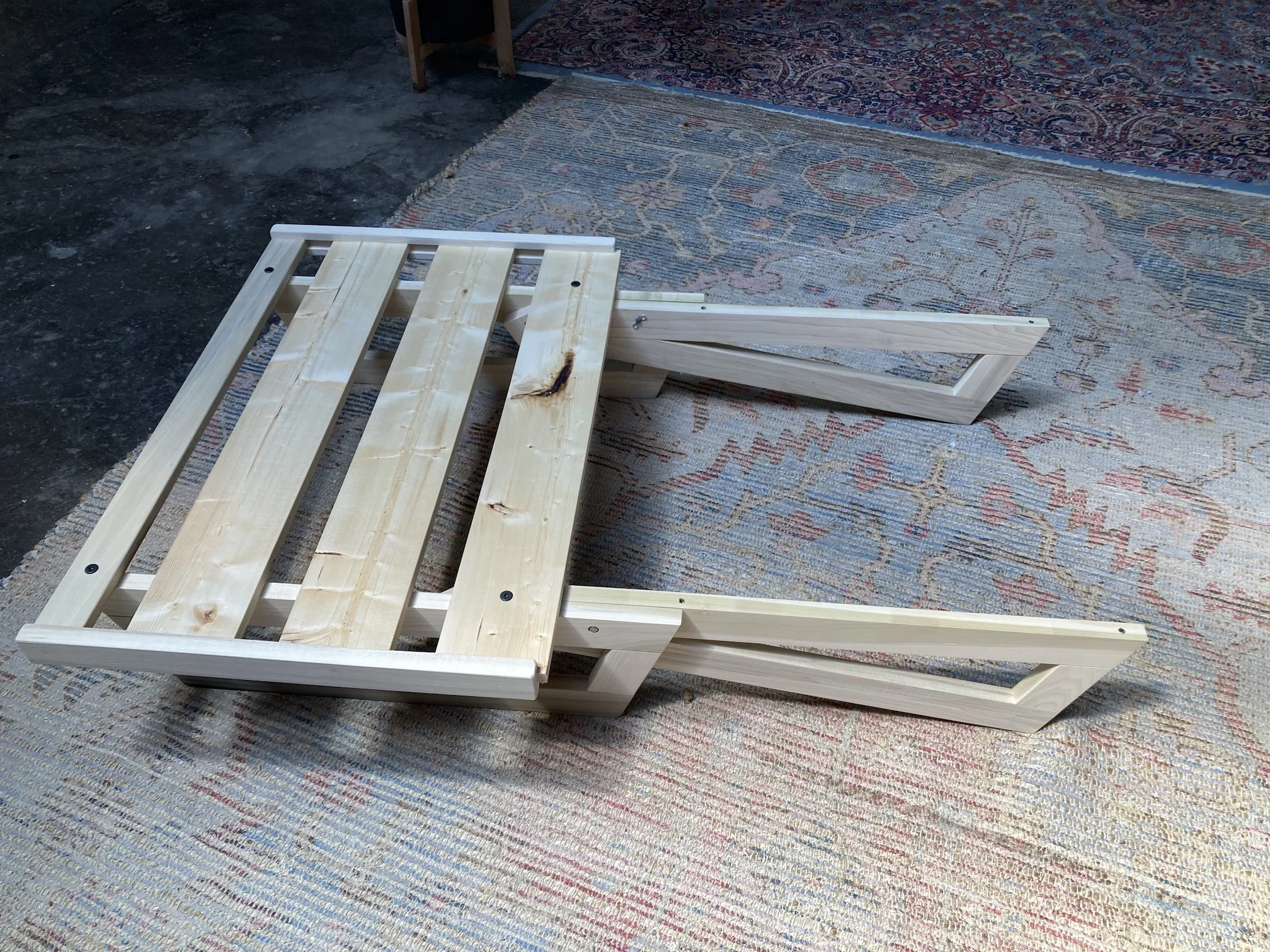

4) Lay the back deck on top of the back base sections aligning the pre-drilled screw holes along the base sections. The back deck is that which has the pre-drilled screw holes the further apart. Make sure the front slat sits flush with the end of the back base sections.
5) Screw down the frame on the back legs, and tighten the screws all the way so that the slats lay flat on the legs without any gap.
6) Repeat steps 4 and 5 for the seat deck. Both decks will have the middle slat protruding out of the end caps at the folding junction.
Enjoy your Riviera futon sofa!
